Product Introduction

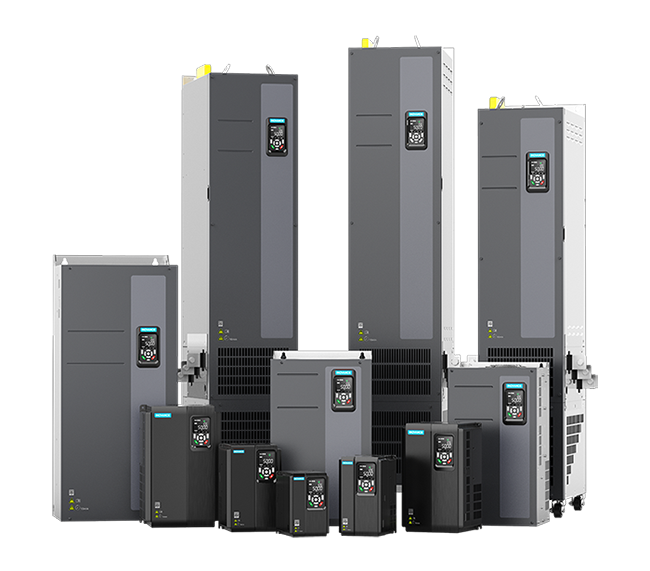

The MD520 series frequency converter is a general-purpose high-performance current vector frequency converter, mainly used to control and regulate the speed and torque of three-phase AC asynchronous motors and three-phase AC permanent magnet motors. It can be used for driving textile, papermaking, wire drawing, machine tools, packaging, food, fans, water pumps, and other automated production equipment.
Product features and advantages
1. It can drive three-phase AC asynchronous motors and three-phase AC permanent magnet motors.
2. Improved driving performance, enabling synchronous and asynchronous motors to achieve zero speed 150% torque without encoders, making driving and control simpler.
3. The technical and performance challenges encountered so far in industries such as cables, machine tools, metal products, petrochemicals, natural gas, lifting equipment, pulp and paper, textiles, printing and dyeing, ceramics, etc. can be easily solved.
4. The VVC algorithm, which includes synchronous machines, makes synchronous machine control, especially in high-speed applications, simpler and more stable.
5. Inheriting the functions of MD500-PLUS, MD500, MD500E, MD290, MD330 and other frequency converters, and compatible with MD500-PLUS optional accessories, including PG card, communication card, IO expansion card, optional bracket, etc
